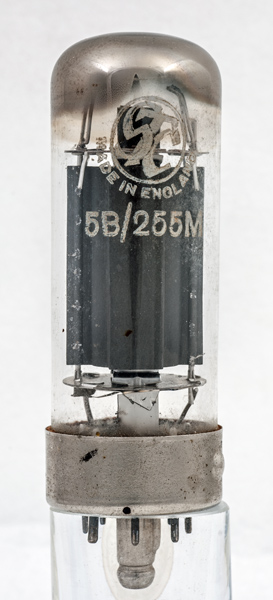

The 5B/255M/CV391 beam tetrode was designed for transmitter use in the HF and low VHF parts of the spectrum. The design has the same rating as the 807. The 5B/255M has a sister valve, the 5B/254M, that is a miniature enveloped version of the 807 complete with anode top cap.
In addition to RF power, the valves were designated for service as audio power amplifiers. Here the valve was to operate in class AB1 and a pair would deliver 15 Watts at 3% total distortion.
The KB/F identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the F identifies the maker as STC, Paignton.
The CVType designation on the reverse together with the factory details.

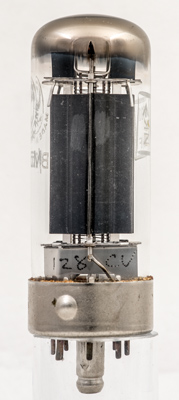

The box anode is shorter than the bright beam plates and the grid windings.

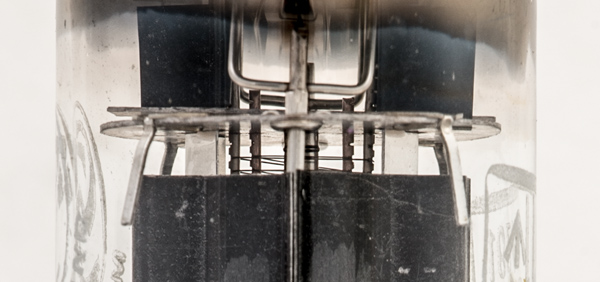

From this small sample of the grid windings, the pitch of the screen grid matches that of the control grid and they both align.
The wide glass tube envelope is 29 mm in diameter and, excluding the B8B base pins, is 77 mm tall.
References: 1040 & data-sheet Type 5B/255M was first introduced in 1957. See also 1957 adverts.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
a
g2
k,bp
g1
g1
k,bp
h



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pout
Pdiss
freq
6.3
0.9
600
250
-45
100
8
4
0.3W
40W
25W
60
Thanks to Frank Philipse for supplying the above PDF datasheet.
