6F17

Sensibly equivalent to:
5A/210K CV416 CV8031

Extras ▼

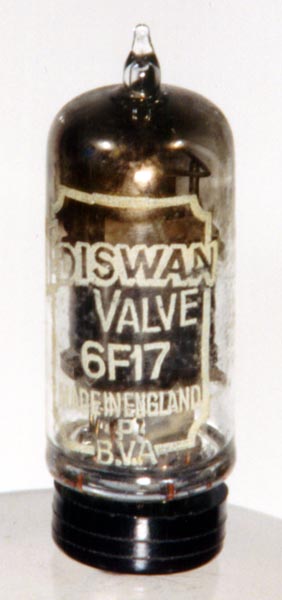

The 6F17 is an RF and pulse beam tetrode. The design dates from 1948 and is for voltage amplification. The 6F17 was used in television receivers.
The S6F17 is a special quality version of this design.

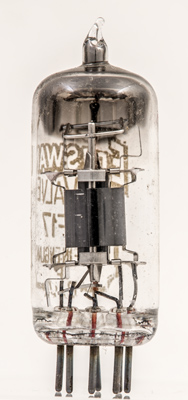

The small electrode assembly within the envelope.

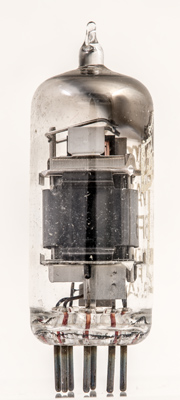

The face view of the anode with the beam plate behind. There is extensive screening and the control grid is wound on copper supports.
The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins, is 45 mm tall.
References: Data-sheet & 1040. Type 6F17 was first introduced in 1948. See also 1948 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
bp
g2



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.3
200
200
-11
17
3
4
Thanks to Frank Philipse for supplying the above PDF datasheet.
