CV3711Sensibly equivalent¶ to:
|
|
|

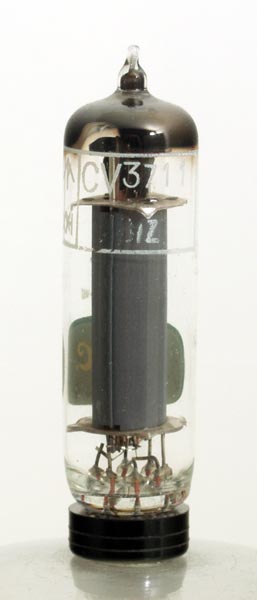

The CV3711 is an audio output pentode with a high mutual conductance, suggesting that full output can be obtained with a low input signal.In class AB1 push pull a pair of valves can deliver 9 Watts at 4.5% distortion. If connected as triodes the pair can deliver 6.3 Watts at 1.6% distortion.The commercial equivalent of this UK Government specification valve is N78.The KB/Z identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the Z identifies the maker as MO Valve Company, Hammersmith.The thin glass tube envelope is 18 mm in diameter, and excluding the B7G base pins, is 63 mm tall.References: Data-sheet & 1040. Type CV3711 was first introduced in 1953. See also 1953 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  g1 | k,g3 | h | h | a | ic | g2 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | Pout | D |
| 6.3 | 0.64 | 250 | 250 | -5.5 | 36 | 5 | 40,000 | 10 | 4W | 10% |
|
