CV1060

Sensibly equivalent to:
5B/250A 8018 807 CV124 VT60

Extras ▼



The CV1060 is a transmitting and audio beam tetrode, the classic 807 modified slightly to meet the UK Government specification and renamed 8018.
The exhibit arrived in the original wrapping with the paper sticker giving it as a CV1060.
The actual valve is an RCA 8018 which is an exact match to the original VT60 design.

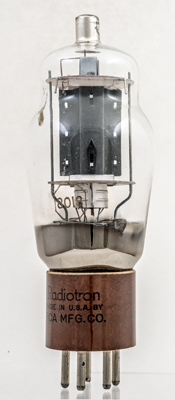

RCA Radiotron on the base cap

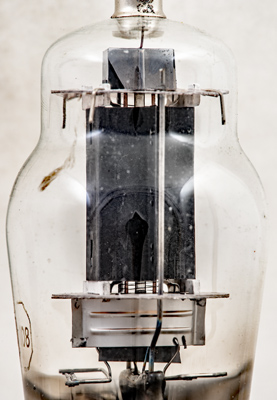

The control grid winding is visible above the lower mica and the screen grid wire can be seen below the top mica.

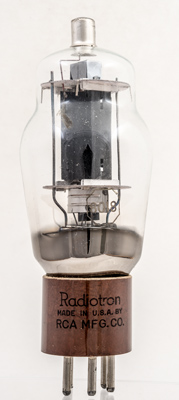

The classic envelope is 51 mm in diameter, and excluding the UX5 base pins is 126 mm tall.
Reference: Data-sheet.



Pin Connections
UX5
1
2
3
4
5
tc
h
g2
g1
k
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
6.3
0.9
300
250
-14
83
8
20k
6.5
6.7W



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
mAg
Pdriv
Pdiss
Pout
freq
f.max
6.3
0.9
600
250
-45
100
7
3.5
0.2W
25W
40W
60
125
Thanks to Frank Philipse for supplying the above PDF datasheet.
