CV1862Sensibly equivalent¶ to:
|
|
|

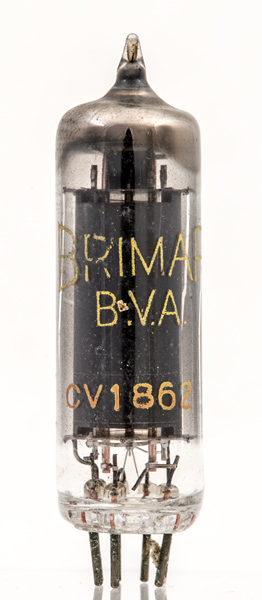

The CV1862 (commercially the 6AQ5) is a an audio output beam tetrode.The CV1862 was rated as being able to produce 4.5 Watts of audio in a single ended circuit. In design terms it is the 6V6 on a B7G base and that is a great deal of heat to dissipate from a small envelope.

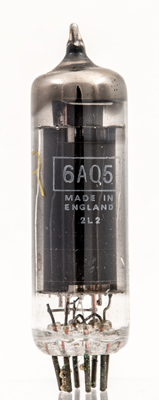

The reverse carries the 6AQ5 Type designation.The thin glass tube envelope is 17 mm in diameter, and excluding the B7G base pins is 59 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  g1 | k,bp | h | h | a | g2 | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | ra | gm | Pout |
| 6.3 | 0.45 | 250 | 250 | -12.5 | 45 | 52k | 4.1 | 4.5W |
|
