N17

Sensibly equivalent to:
1P10 3S4 CV820 DL92
See also:
Mazda Miniature Valves Advert

Extras ▼

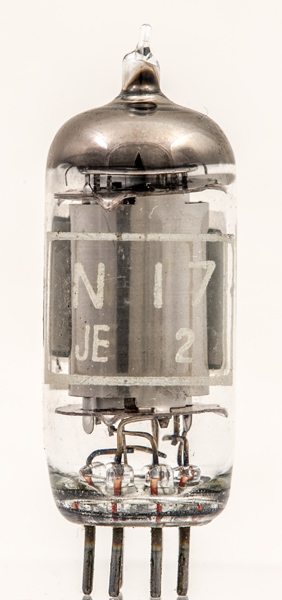

The N17 is an audio output pentode designed for battery portable radio receivers in the late 1940s. The output power is very small at just over a quarter of a Watt so a high efficiency loud speaker would be required, probably of limited fidelity.

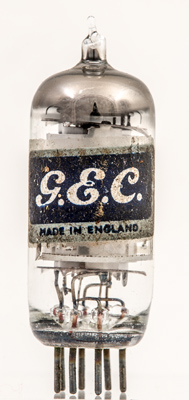

GEC is the brand used by M-OV for valves for the professional market.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins it is 47 mm in length.
References: Data-sheet & 1040. Type N17 was first introduced in 1949. See also 1949 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f
a
g1
g2
hct,g3
a
f+



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pout
D
1.4
0.1
90
67.5
-7
7.4
1.4
0.1M
1.58
0.27
12%
Thanks to Frank Philipse for supplying the above PDF datasheet.
