6AU6

Sensibly equivalent to:
6AU6A 6AU6WA 6AU6WB 6AU6WC 6J4P 6P2 CV2524 EF94

Extras ▼



The 6AU6 is an American design the pro-electron Type equivalent is the EF94. The 6AU6 has controlled warm-up times and is a sharp cut-off type, that is not AGC controlled. Usage is RF or AF amplification.

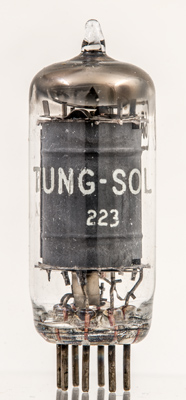

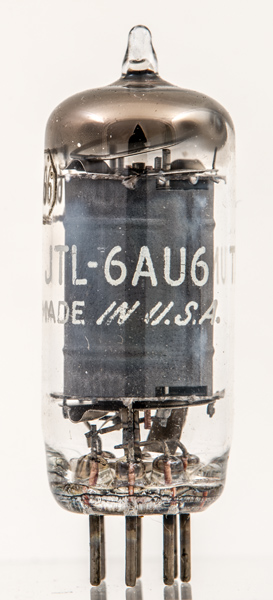

The Tung-Sol name. Note the screening of the anode lead.
The thin glass tube envelope is 18 mm in diameter and excluding the B7G base pins, is 46 mm tall.
References: Data-sheet & 1040. Type 6AU6 was first introduced in 1946. See also 1946 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
g3,s
h
h
a
g2
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
150
-6.5
10.6
4.3
1.0M
5.2
PDF scanned from an original document held by the museum
