CV1586Sensibly equivalent¶ to:
|
|
|
The CV1586 is a receiver triode and the prototype was the Mazda HL23.

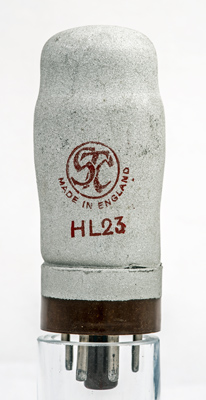

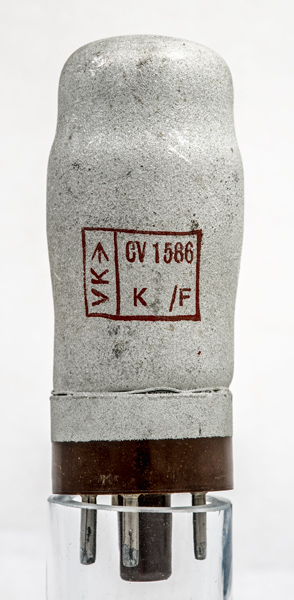

This STC made exhibit also has the commercial HL23 on the reverse. It is unusual to find a MO base on a product not made by Mazda. Clearly it happens in this case as the MO base was listed in the Government CV specification issued to all makers.The K /F identifies this valve as being made to specification K1001 or K1006 and the /F identifies the maker as STC, Paignton.The classic envelope is 33 mm in diameter and, excluding the MO base pins, is 95 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  f | nc | a | nc | g1 | m | nc | f |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 2.0 | 0.05 | 150 | -2.4 | 1.5 | 21,000 | 1.5 |
|
