CV488Sensibly equivalent¶ to:BS90 GXA95
|
|
|

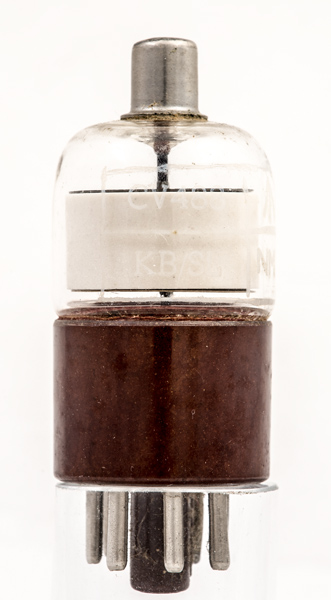

The CV488 is a protective spark gap. The CV488 was developed from the CV295 (BS90) and is gas filled.The KB/SL identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the QG identifies the maker as AEI, Leicester.

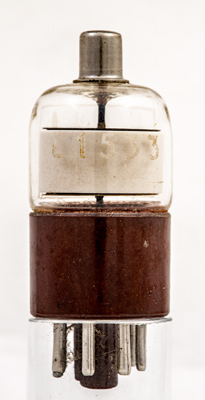

On the glass is L1533 - probably a serial number.The wide glass tube envelope is 30 mm in diameter and, excluding the IO base pins, is 60 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc |  L | nc | nc | nc | nc | nc | nc | L | U |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va |
| - | - | 9,750 |
|
Updated June 04, 2025.
|
|
