The CV1347 was originally known as the ARTH2. The AR Stands for Army Receiving.
The Mullard ECH35 Triode Hexode was the commercial equivalent and prototype.

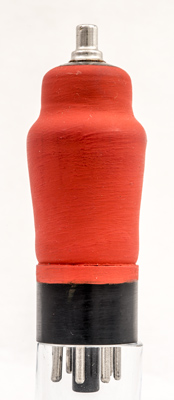

This exhibit has the red paint associated with Mullard but the lettering is not typical Mullard so this may be a Philips product.
On the reverse the screening paint is unmarked.

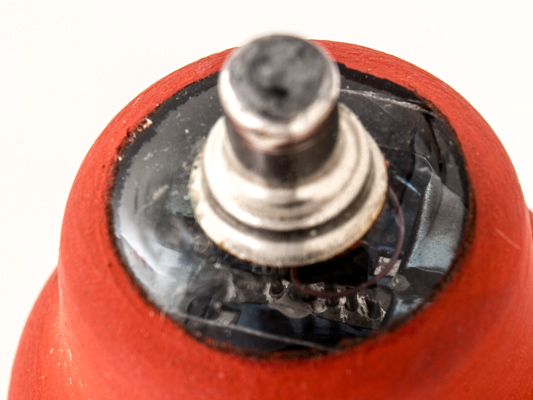

The top view. In the centre is the hexode and this suggests that the oscillator triode is mounted below.
The classic envelope is 35 mm in diameter, and excluding the IO base pins is 90 mm tall.
Reference: Data-sheet. Type CV1347 was first introduced in 1935. See also 1935 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
m
h
a
g2,g4
g1(t),g3
a(t)
h
k
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
300
100
-2.0
2.2
3.0
1.3M
0.65



Absolute Maximum Operating Conditions
Triode
Va
mAa
150
3.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
