B1C/1E

Sensibly equivalent to:
CV433

Extras ▼

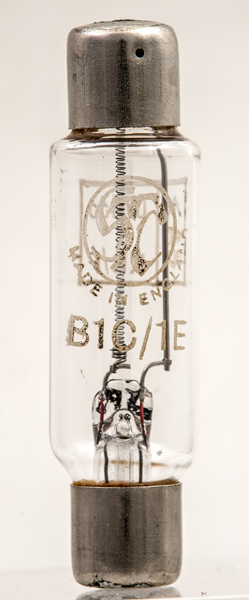

The BIC/1E is a current stabiliser of Barretter. It will maintain a constant current of 0.98 Amps for a voltage of 3 to 9.5 Volts. It would be used in a series circuit to limit current. The B1C/1E was the prototype for the CV433 - also on the glass.

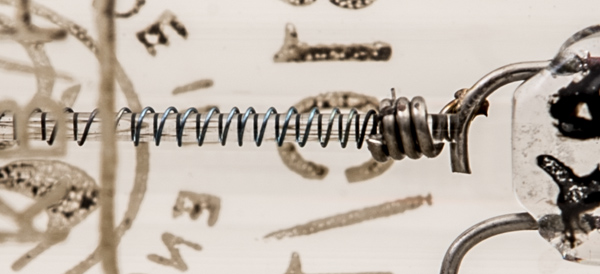

The active element is a coil of iron wire.

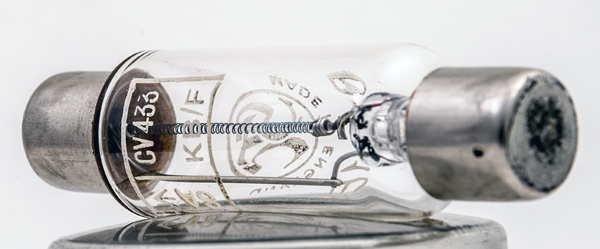

Here the wire element can clearly be seen to be supported by a glass rod.
The thin glass tube envelope is 19 mm in diameter, and including the base caps is 72 mm tall.
Reference: Data-sheet. Type B1C/1E was first introduced in 1949. See also 1949 adverts.



Absolute Maximum Operating Conditions
Stabiliser
mAa
980
Thanks to Frank Philipse for supplying the above PDF datasheet.
