CV9026

Sensibly equivalent to:
DK96
See also:
Pentagrid Converters

Extras ▼

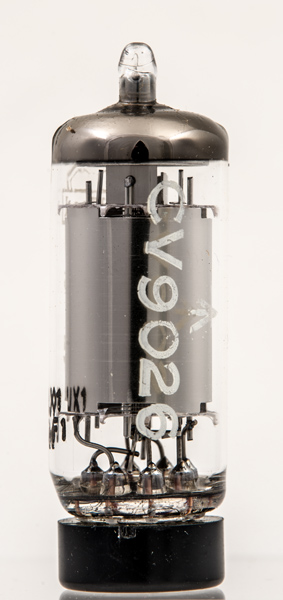

The CV9026 (commercially the DK96) is a dry battery frequency changer that was designed for broadcast radio receivers.

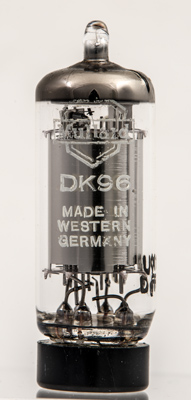

The Mullard logo and Made in Western Germany on the other side.

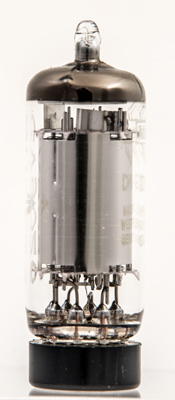

The many wire grids are just visible.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
References: Data-sheet & 1040. Type CV9026 was first introduced in 1953. See also 1953 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
f-
a
g2
g1
g4
g3
f+,g5



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
1.4
0.025
85
68
0
0.6
0.14
1M
0.3
Thanks to Frank Philipse for supplying the above PDF datasheet.
