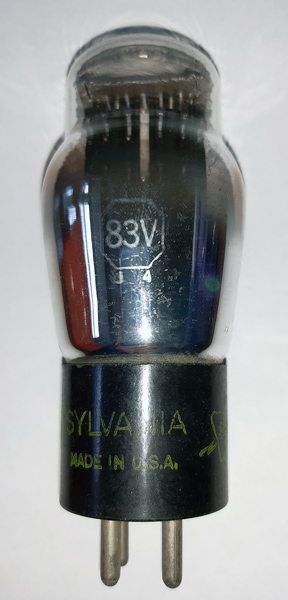

The 83V is an indirectly heated full wave rectifier with the cathode connected to one side of the heater.

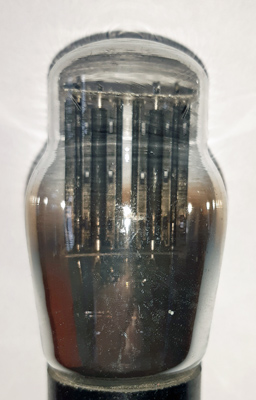

The twin rectifier sections.

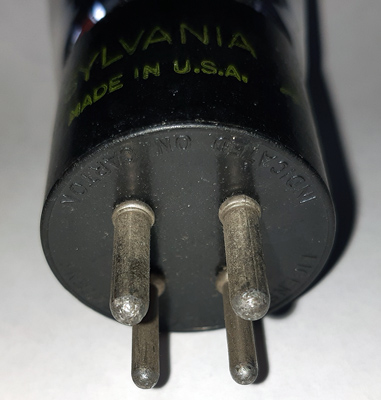

The UX4 base pins. These are solid as the base is a bayonet type that the pins rotate into.

Thanks to Mark Mallison for sending the images.

The classic envelope is  mm in diameter, and excluding the UX4 base pins is  mm tall.

Reference: Data-sheet. Type 83V was first introduced in 1936. See also 1936 adverts.

Pin Connections

Absolute Maximum Operating Conditions^¶

Thanks to Frank Philipse for supplying the above PDF datasheet.
