The Neophyte Amplifier

R J Caborn.The Radio Constructor, October, 1969.

Extras ▼

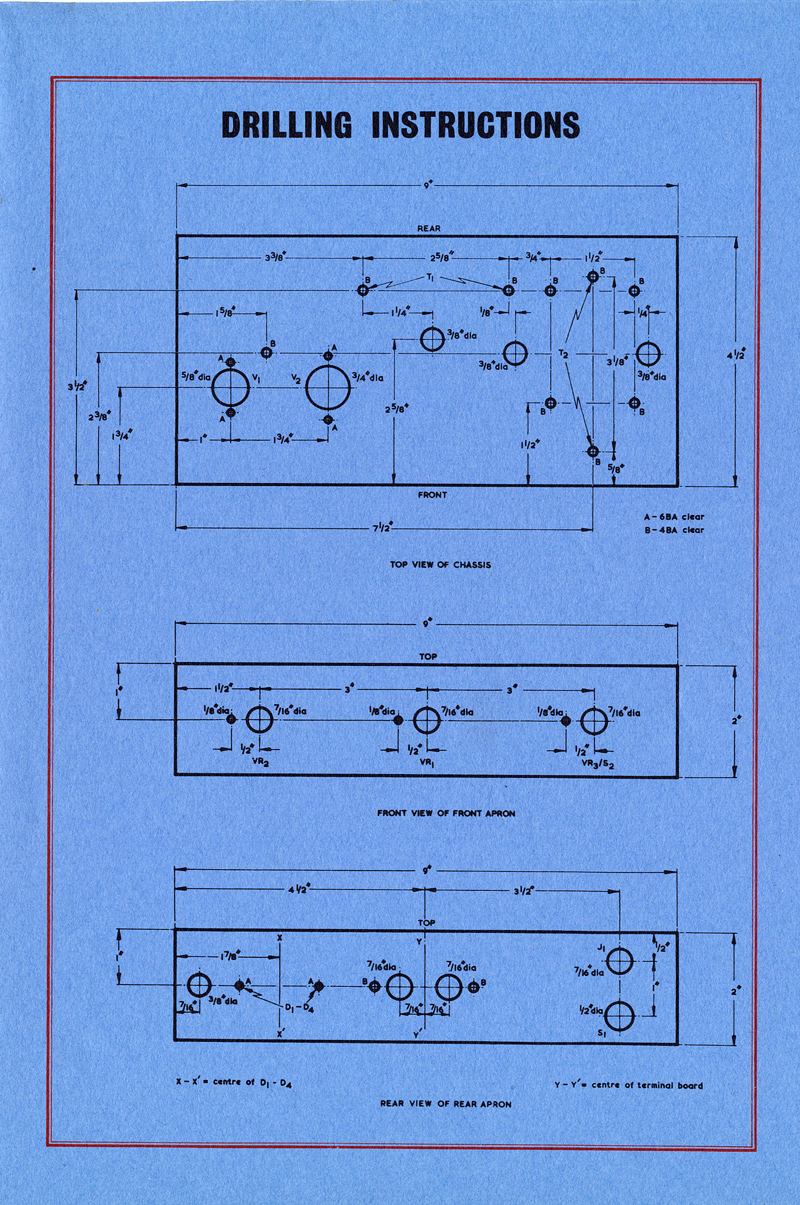

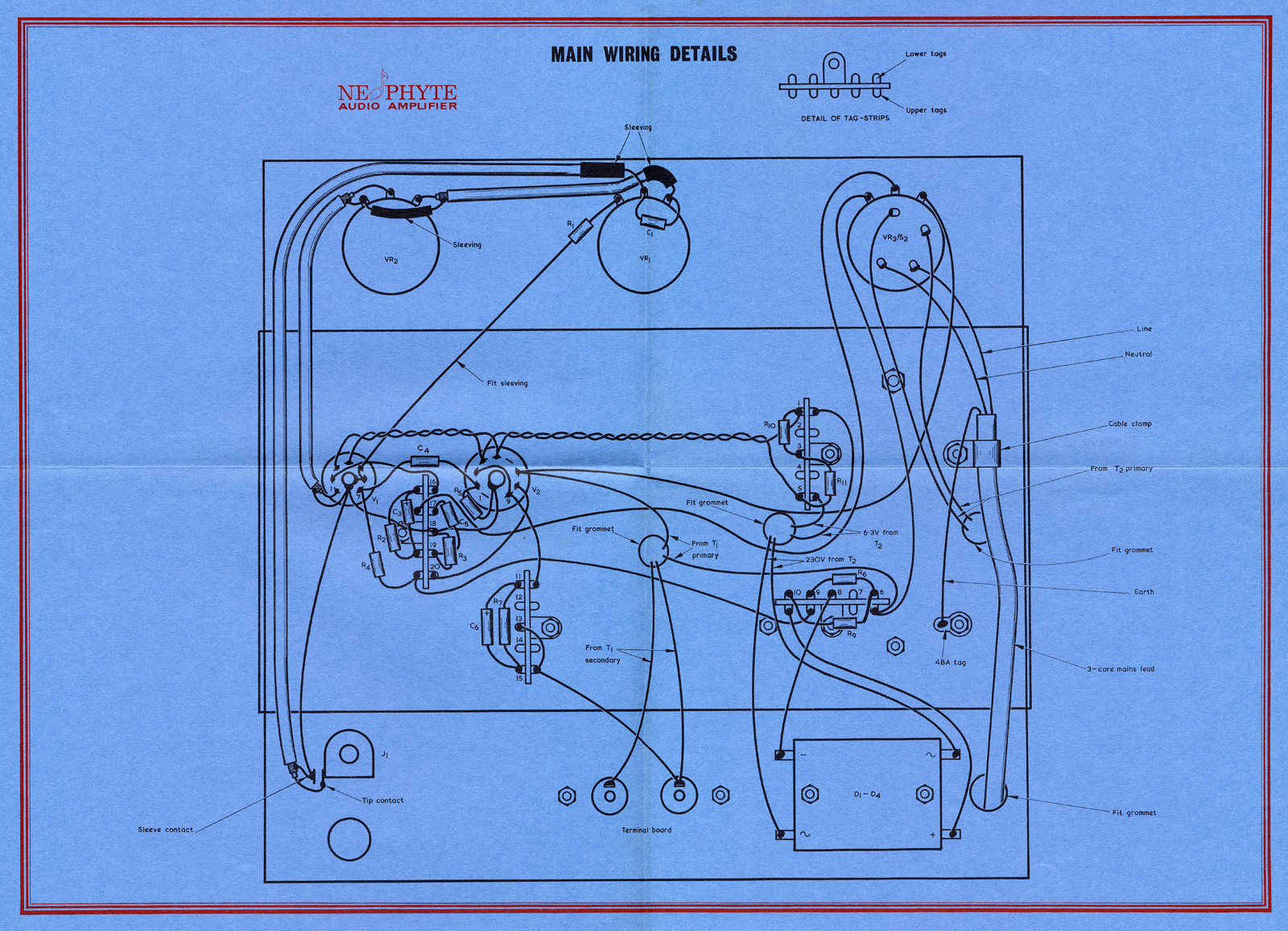

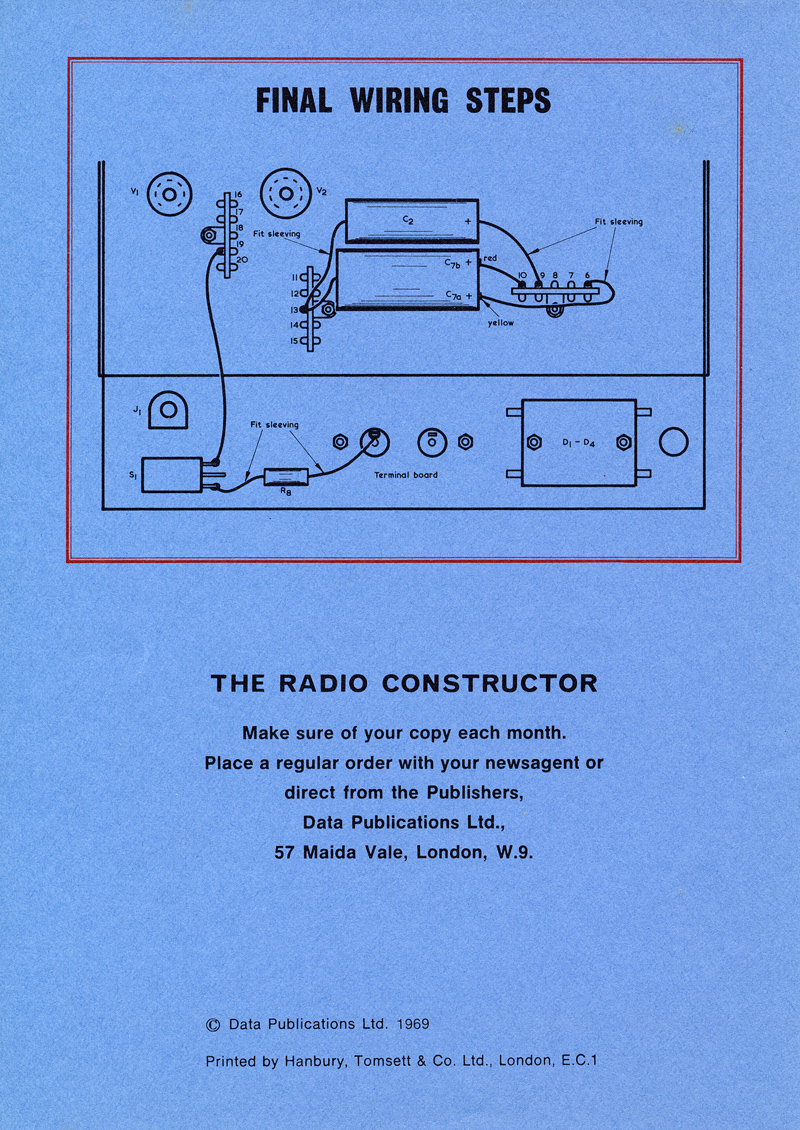

To assist in construction, the drilling and wiring diagrams were published in this special supplement.

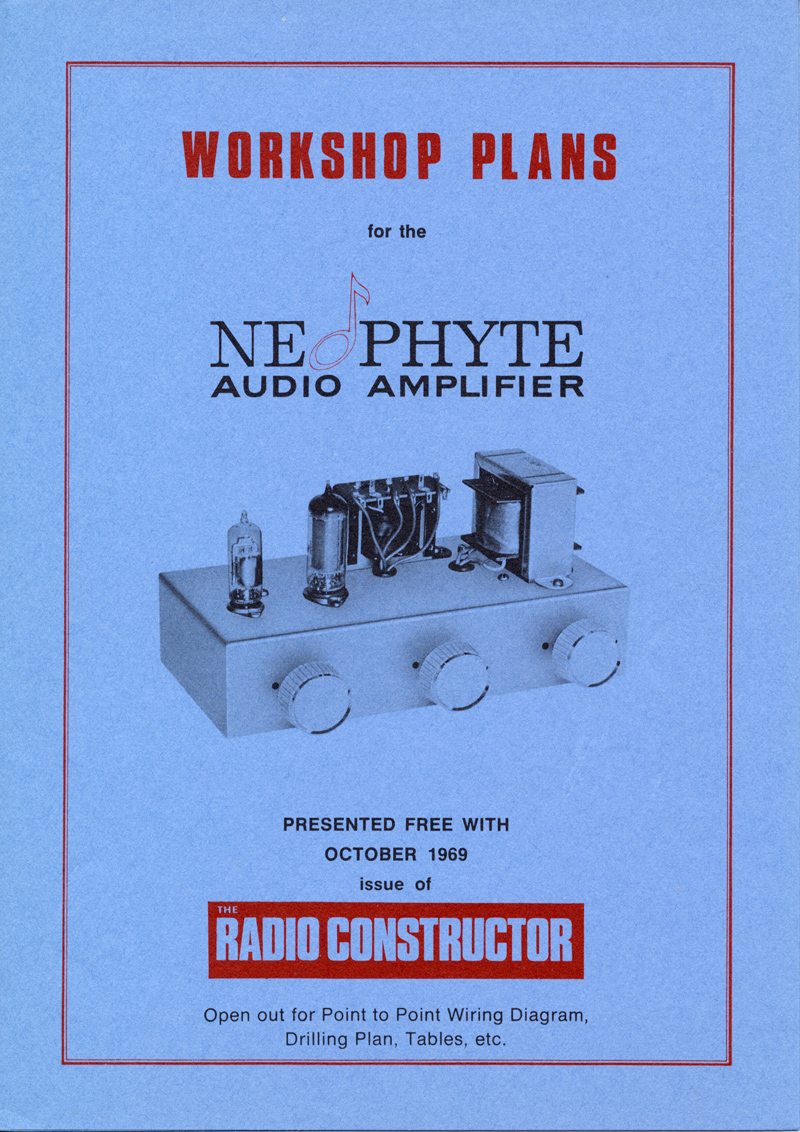

The completed amplifier
Click for full size image
Use browser back button to return.
art-128a
