BTH

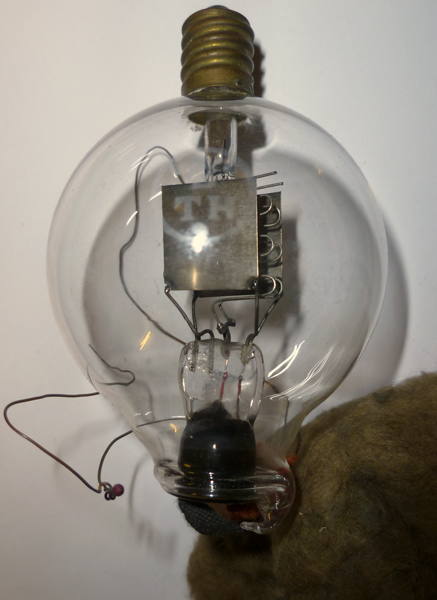

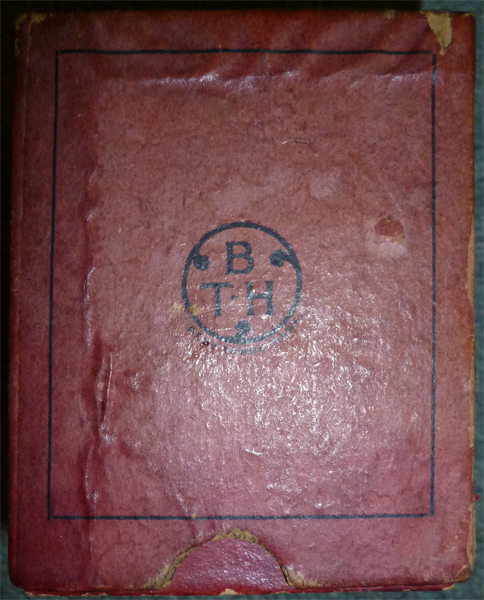

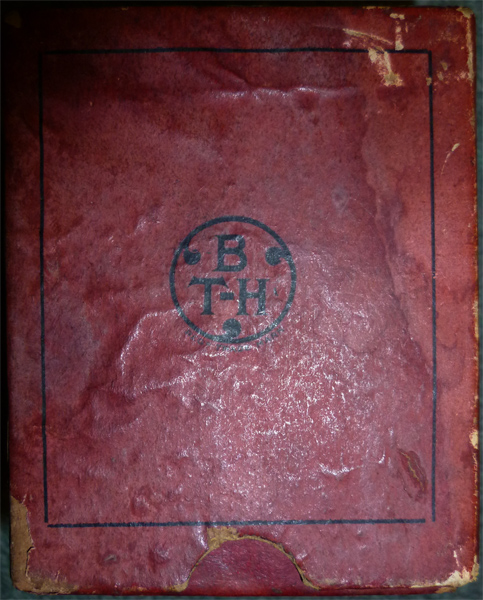

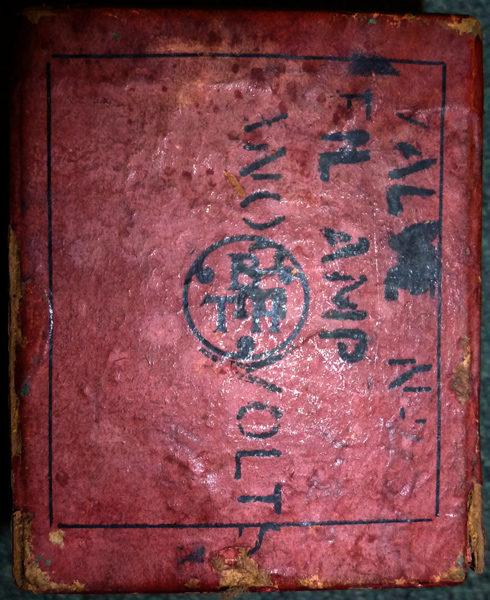

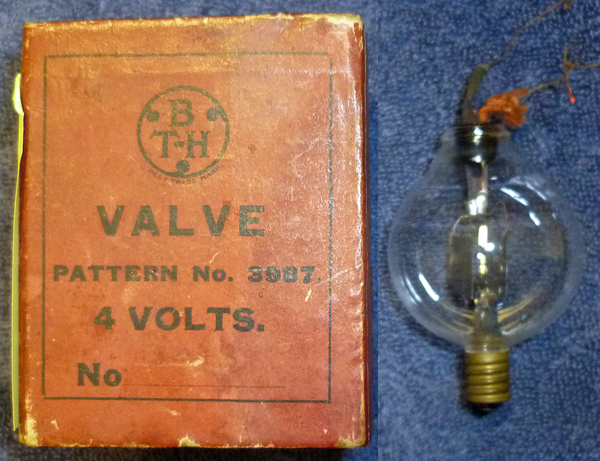

The box is 108 mm square and 128 mm long. The valve was held by horse hair wadding. The image shows that the box consisted of an inner box that the outer slipped over this making the sides double thickness. Another example of this type of construction from BTH can be seen here.
