RG3-250


See also:
High Voltage Rectifiers Advert

Extras ▼

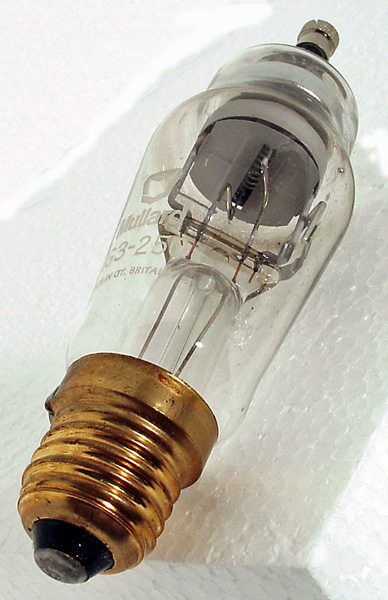

The RG3-250 is a mercury vapour half-wave power rectifier. The anode is caged to reduce the emission of x-rays from the envelope. Such a rectifier would have been used in transmitting or radar equipment. See also {aab0003^RG3-250A} the variant where the top cap is of the top hat style.
The filament and cathode connects to the base and the anode to the top-cap.
The classic envelope is 42 mm in diameter and, is 147 mm tall.
References: Datasheet & ref1040^}. Type RG3-250 was first introduced in 1938.



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
2.5
5.0
3,500
250
PDF scanned from an original document held by the museum
