EM71


See also:
Tuning Indicators - EM71 data sheet in German

Extras ▼

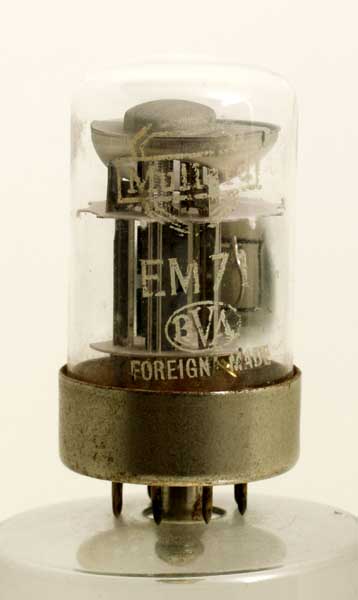

The EM71 Magic Eye from Mullard has a pressed glass foot construction. The grid voltage change to control the display is 20 Volts.

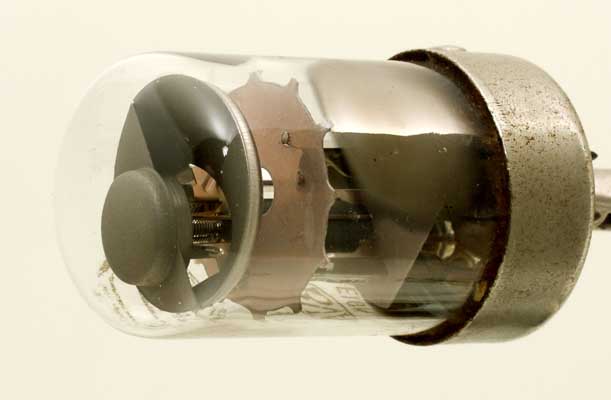

Unlike most tuning indicators, such as the EM34, the EM71 has the display offset in the envelope to give a fan display.

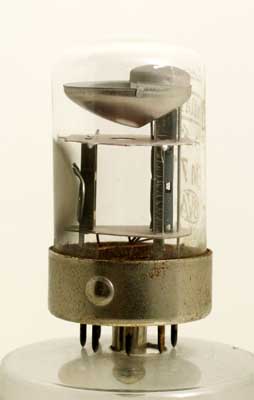

Another interesting feature is the complete offsetting of the electrode assembly. To balance up the mica supports the getter is mounted on a V shaped bracket on the other side of the envelope.
The wide glass tube envelope is 28 mm in diameter and, excluding the B8B base pins, is 54 mm tall.
References: Datasheet, 3002 & 1040. Type EM71 was first introduced in 1949.



Pin Connections
B8B
1
2
3
4
5
6
7
8
h
t
g1(sc)
ic
a
g1
k
h



Absolute Maximum Operating Conditions
CRT
Vh
Ah
Va
mAa
6.3
0.3
250
2.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 18, 2014.
