2D13



Extras ▼

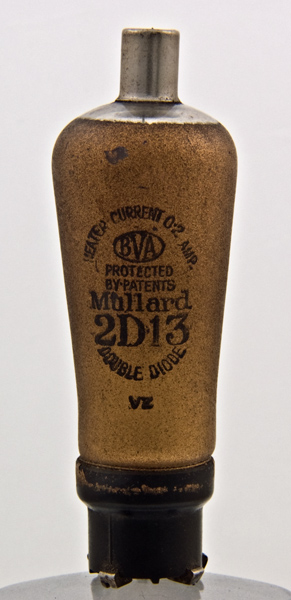

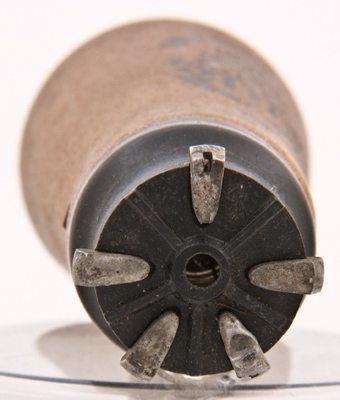

This small double diode has an unusual base. The 'P5' side-contact base cap was, we think, a Philips special (P = Philips?) and was also used on a few TV tubes, including the miniature MW6/2 projection tube.
See also 2D13 for a view of the insides.
Valves with side-contact base caps were widely used in Philips sets during the later 1930s but some other set manufacturers disliked them so Mullard were forced to market '-C' versions of their side-contact types.
The balloon envelope is 29 mm in diameter and, excluding the Ct5 base pins, is 86 mm tall.
References: Datasheet & 3002. Type 2D13 was first introduced in 1934.



Pin Connections
Ct5
1
2
3
4
5
tc
m
h
h
k
a(d1)
a(d2)



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
13.0
0.2
200
0.8
PDF scanned from an original document held by the museum
Updated April 02, 2014.
shape:balloon construction:pinch type:double.diode age:1930.1940 base:ct5 heater:200ma pins:5 pin:1.m pin:2.h pin:3.h pin:4.k pin:5.a(d1) pin:tc.a(d2)
