Pen20


See also:
The Azide Process - 0.18A Series-String Valves - Mullard Pen20 Box

Extras ▼

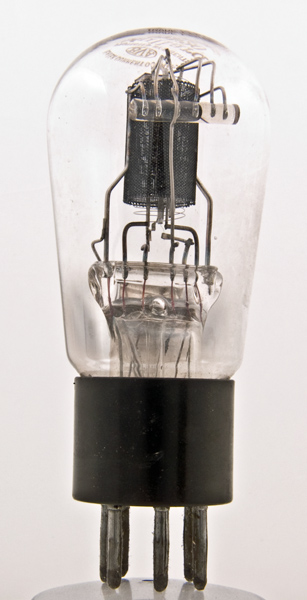

The Pen20 was made from 1932 in both B5 and B7 bases. To achieve the modest 1.5 Watts output the anode load was 8,000 Ohms. In 1934/5 the Mullard price was 18/6 (18 shillings and six pence) - expensive.

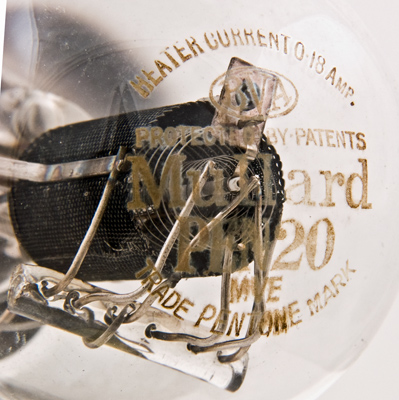

The dome has the etched lettering. The grids are spiral wound and circular. The two clearly visible are the Suppressor and screen grids. The control grid is closer in to the cathode. The cathode is an oxide coated cylinder with a ceramic tube within to provide heater cathode insulation. The heater is a single strand passing through the centre of the insulator. The glass insulator outside the mesh anode provides support for the electrodes.

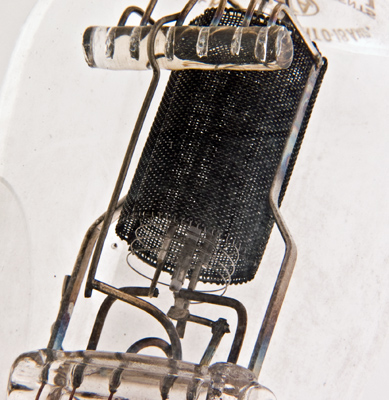

The pinch and lower connections. The suppressor grid extends below the anode.
See also Pen20 for more details.
The balloon envelope is 49 mm in diameter and, excluding the B7 base pins, is 102 mm tall.
References: 1043 & 4024. Type Pen20 was first introduced in 1932.



Pin Connections
B7
1
2
3
4
5
6
7
-
g1
g2
h
h
k,g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
Pout
20.0
0.18
200
200
-15.0
25.0
9.0
1.5W
Updated December14, 2012.
