EZ2



Extras ▼

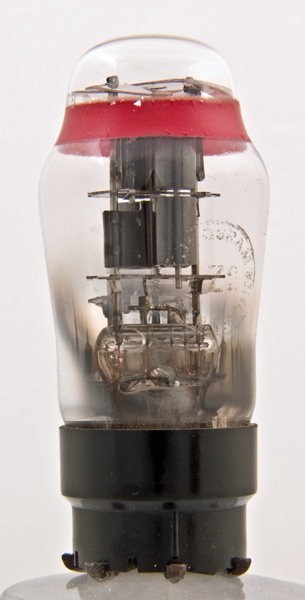

The EZ2 is a full wave rectifier designed for use in car radios.

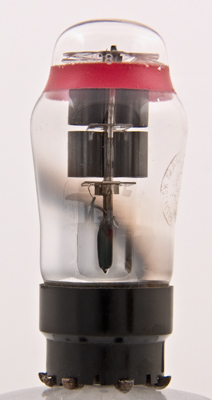

The side view of the pair of anodes arranged vertically on the single cathode.
The anode proper is close into the cathode tube, the circular tubes either side of the active anode region are cooling fins.
The classic envelope is 35 mm in diameter, and excluding the Ct8 base pins is 80 mm tall.
References: Datasheet & 1043. Type EZ2 was first introduced in 1937.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
-
h
h
k
a1
-
-
a2



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.4
350
60.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
