UL46



Extras ▼

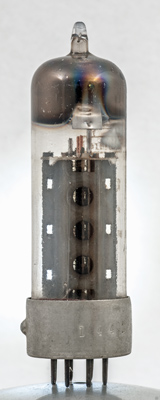

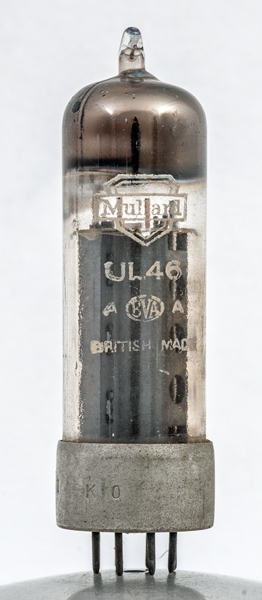

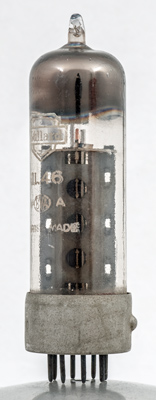

Mullard describe the UL46 as a video output pentode with a maximum anode dissipation of nine Watts. This is an early production version of this type as it features the metal skirt around the all glass envelope to hold the locating pip. Our other UL46 shows the full transition to an all glass format.
The UL46 is a fairly uncommon valve because it is essentially a UL41 audio output pentode constructed with improved internal insulation to enable it to function as a video output pentode, or a line or frame output amplifier in TV service.
This valve has the B8A base with the pins equi-spaced around a circle. The UL46 was in fact one of the last B8A types to be introduced. The B8A was to give way to the B7G and B9A formats very quickly.
The thin glass tube envelope is 20 mm in diameter and, excluding the B8A base pins, is 69 mm tall.
Reference: 1040. Type UL46 was first introduced in 1951.



Pin Connections
B8A
1
2
3
4
5
6
7
8
h
a
ic
ic
g2
g1
k
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Pdiss
Pout
D
45
0.1
170
170
-10.4
53
10
20,000
9.5
9.0W
4.2W
10%
Updated April 14, 2013.
