The S4143P is a video camera tube. Newvicon is a trademark of Matsushita of Japan and the Newvicon is a Videcon like device in that it it is a photoconductive tube that is scanned with a low velocity beam. The Newvicon target is made from Zinc Selenide and Zinc Cadmium Telluride. The notable feature of the Newvicon is its high light sensitivity.![](../pics/aaa1144a.jpg)

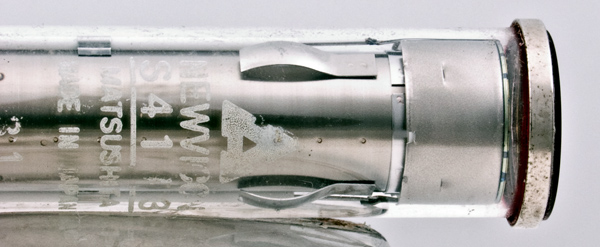

The target end.![](../pics/aaa1144b.jpg)

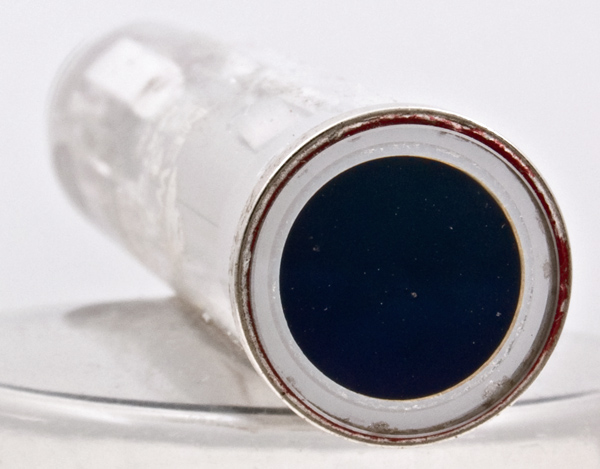

The round target.![](../pics/aaa1144c.jpg)

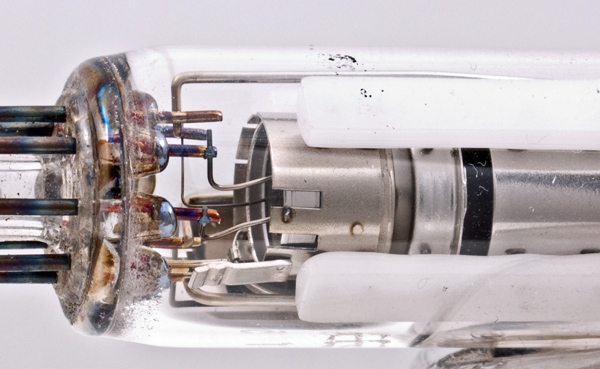

The special eight pin base, heater and cathode followed by the grid.![](../pics/aaa1144d.jpg)

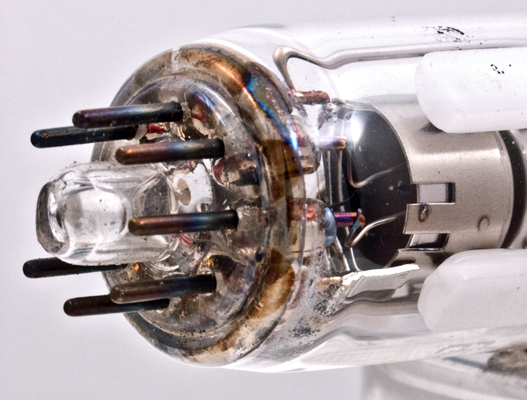

The base and the heater leads. The cathode needs to be a flat emissive surface.The end window envelope is 18 mm in diameter, and excluding the base pins is 92 mm tall.Reference: Observation. |
