The B5C5T is a television camera viewfinder tube. The modern design has bonded deflection coils and a virtually flat bonded faceplate.![](../pics/aaa1206a.jpg)

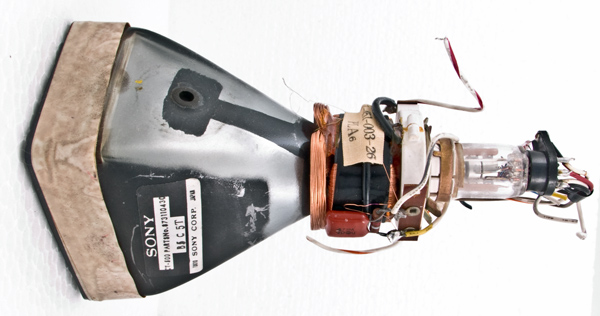

Like all picture tubes the EHT is connected to the final anode by a recessed connector. There is graphite on both the inside and outside of the envelope bell, probably to act as the smoothing capacitor for the EHT.![](../pics/aaa1206b.jpg)

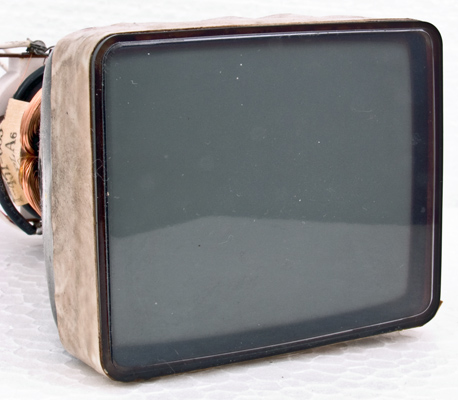

The bonded faceplate. The glass is quite thick and curved on the inner surface. The rectangular screen is 85 x 68 mm.![](../pics/aaa1206c.jpg)

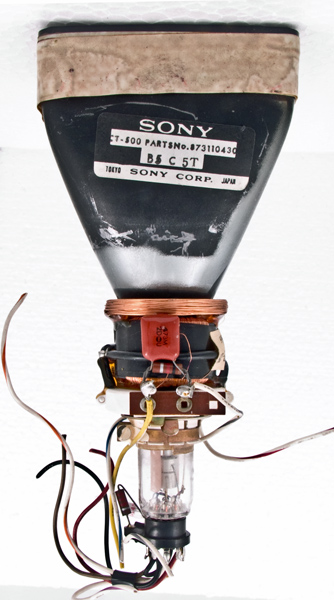

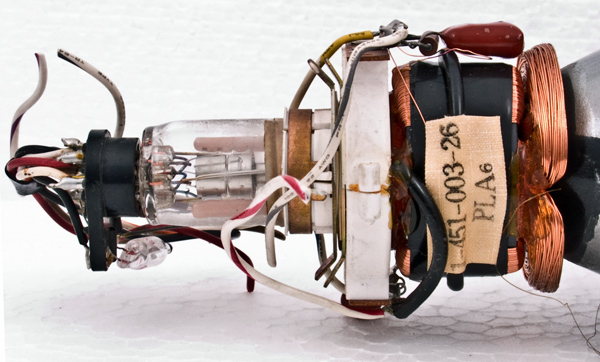

The neck components and electron gun.The end window envelope is 20 mm in diameter, and excluding the B7G base pins is 165 mm tall.Reference: Observation. |
