SG20


See also:
0.18A Series-String Valves

Extras ▼

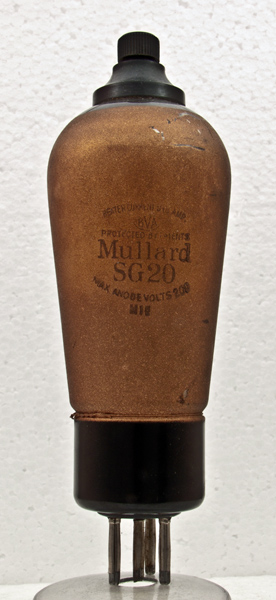

The Mullard SG20 is a variable μ RF tetrode (screened grid valve) that was introduced for use on DC mains in 1932. The heater is unusual in being rated at 180 mA.

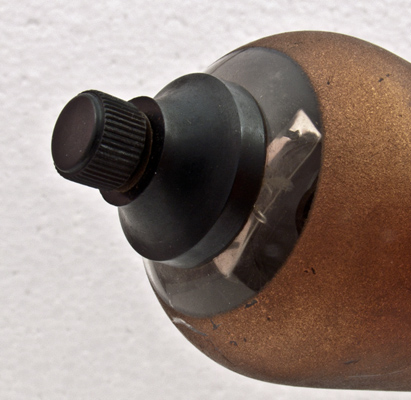

The anode top cap is of the screw type. Inside the metalised envelope the shape of the rectangular screening cage can be seen. The g2 has horizontal wires not a mesh and the anode consists of two plates supported from the top cap connection.

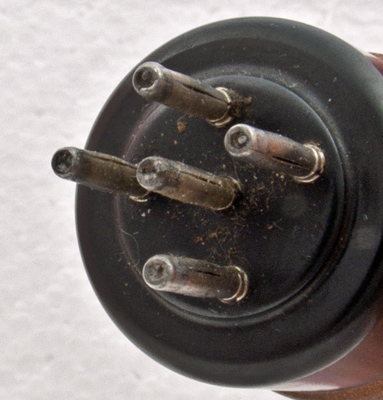

The B5 base with slotted and compressed pins.
The envelope is 49 mm in diameter, and excluding the B5 base pins is 129 mm tall.
References: 1043 & 1040. Type SG20 was first introduced in 1932.



Pin Connections
B5
1
2
3
4
5
tc
g2
g1
h
h
k
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
20
0.18
200
135
-1
3.0
1.0
0.275M
2.0
Updated December31, 2011.
