1928



Extras ▼



The 1928 is a current stabiliser for use on 180 mA heater chains. The current is virtually constant for voltages of 90 to 220 volts.

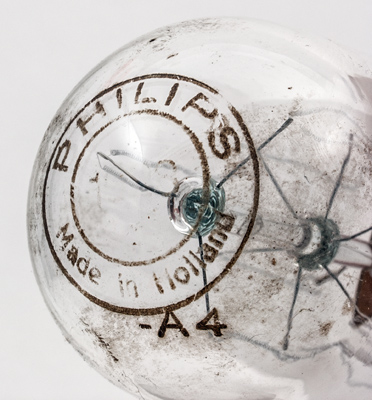

The Philips identification and Made in Holland. The 1928 is almost too feint to read.

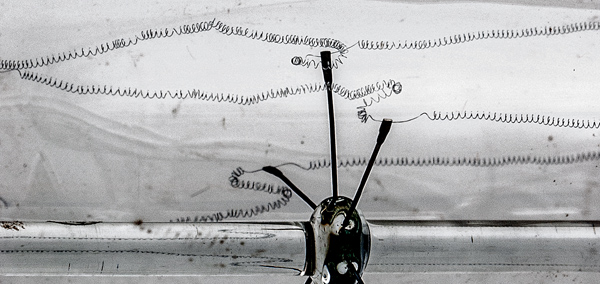

The coiled wire (probably iron) is held in place by the folded tips of the supports.

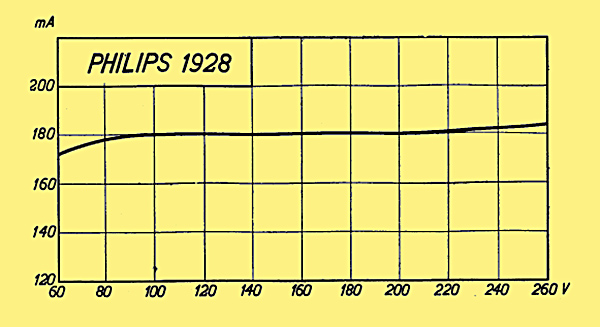

The characteristic curve. Courtesy of Frank Philipse.

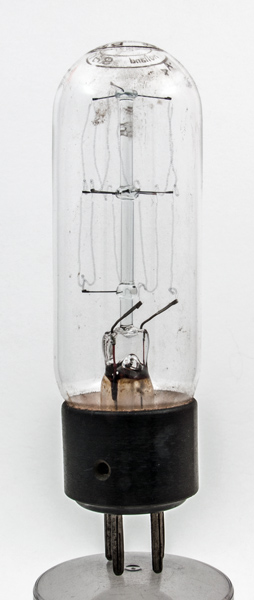

The wide glass tube envelope is 38 mm in diameter, and excluding the B4 base pins is 117 mm tall.
Reference: Datasheet. Type 1928 was first introduced in 1932.



Pin Connections
B4
1
2
3
4
-
-
f
f



Absolute Maximum Operating Conditions
Stabiliser
Vh
90-220
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 12, 2015.
