VP2D


See also:
The Azide Process - New Tungsram RF Pentodes

Extras ▼



The Tungsram VP2D is a battery vari-μ RF pentode. This Type was produced with both B4 and B7 base caps. The B4 version was issued in 1938 with the B7 the following year.

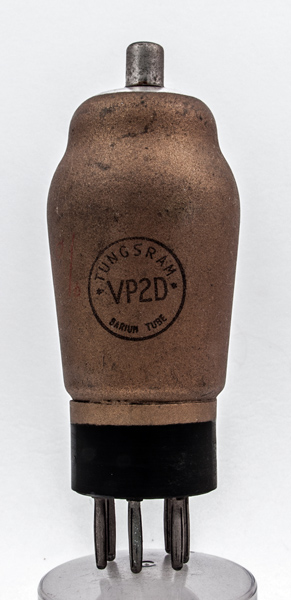

The metallising carries the identification and the words Barium Tube. Barium Azide was the first successful method of producing oxide coated filaments but was messy. Here the name is used as a brand identifier as the Azide process had been superseded long before 1938.

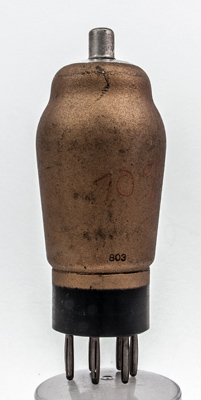

The plain reverse carries the number 803
The classic envelope is 46 mm in diameter, and excluding the B7 base pins is 106 mm tall.
Reference: 1043. Type VP2D was first introduced in 1937. See also 1937 adverts.



Pin Connections
B7
1
2
3
4
5
6
7
tc
m
a
g3
f
f
nc
g2
g1



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
2.0
0.1
120
75
-1.0
1.3
0.6
0.9M
2.0
Updated November 03, 2022.
