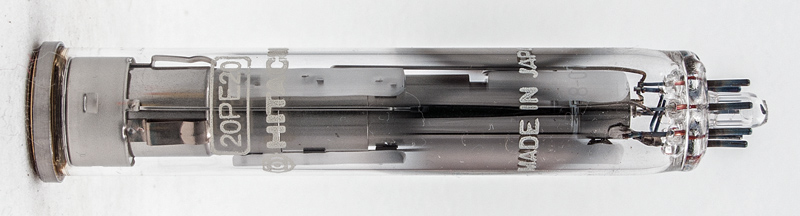

The 20PE20 is a 2/3 inch camera tube capable of a resolution of up to 550 lines.![](../pics/aaa1634a.jpg)
The target window with gold plated connecting ring. The target end is 20 mm in diameter.![](../pics/aaa1634b.jpg)
The base and gun assembly.![](../pics/aaa1634c.jpg)
The tube mounted within the scanning coil unit. The latter has a diameter of 29 mm and is 79 mm long.![](../pics/aaa1634d.jpg)
The target connection is a single point spring contact.The end window envelope is 18 mm in diameter, and excluding the base pins is 101 mm tall.Reference: Internet. |
