329



Extras ▼



The 329 is a barretter or current stabiliser for use on heater chains to reduce the switch-on surge and consequent damage to heaters.
This barretter has three pins and a centre tapped filament.

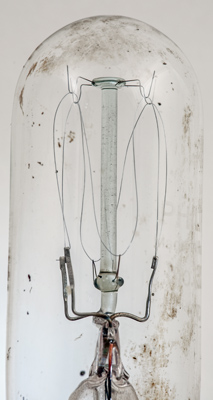

The single strand iron wire is looped over the support hooks that are mounted on the central glass stem. The wire is held by being clamped into a fold of the support rods.

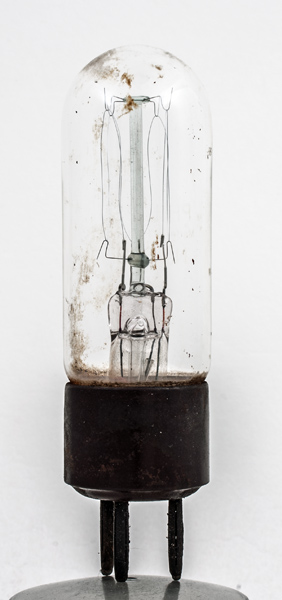

The wide glass tube envelope is 33 mm in diameter, and excluding the B9A base pins is 96 mm tall.
Reference: Datasheet.



Pin Connections
B4
1
2
3
f(1),f(2)
f(1)
f(2)



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
10-30
1.15
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 30, 2017.
shape:wide.glass.tube construction:all.glass type:barretter base:b4 pins:3 pin:1.f(1).f(2) pin:2.f(1) pin:3.f(2)
