6-8B



Extras ▼



The 6-8B current stabiliser is known as a Barretter in Europe but as an Amperite in USA. Amperite is also the company name.
The figures of the Type designation describe the operating characteristics. The 6 represents the threshold stabilising current of 600 mA and the 8 is the threshold dropping voltage, in this case eight Volts.

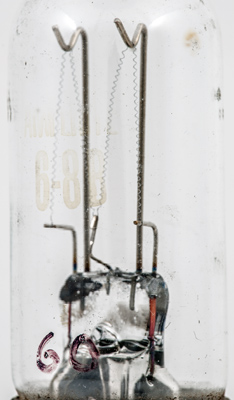

The filament is a single wire presented as an open coil.

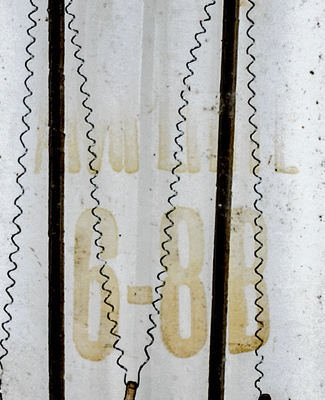

The lettering only became visible during photography and afterwards it was much easier to see - when you knew where to look.
The wide glass tube envelope is 28 mm in diameter and, excluding the UX4 base pins, is 79 mm tall.
Reference: 3002.



Pin Connections
UX4
1
2
3
4
f
-
-
f



Updated August 14, 2019.
shape:wide.glass.tube construction:pinch type:barretter age:1930.1940 base:ux4 pins:4 pin:1.f pin:2.- pin:3.- pin:4.f
