ZM1080



Extras ▼

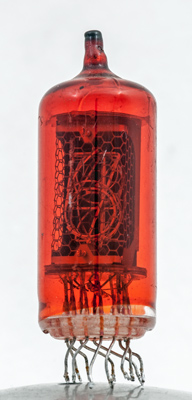

The red contrast coating enhances the neon glow. The plain glass version is the ZM1082.

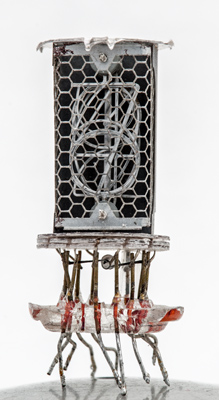

This example came with a broken envelope that left the internal structure intact.

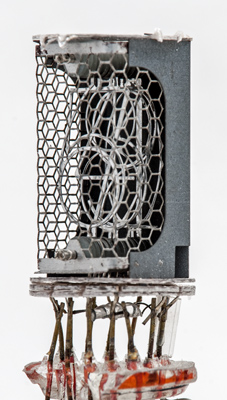

Within the anode cage are ten wire numeral shaped cathodes. The lower set of ceramic insulators are clearly seen.

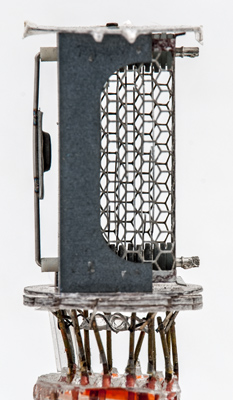

the stack of cathodes. Note the glass insulated anode connection lower left.
The thin glass tube envelope is 18 mm in diameter and, excluding the base wires, is 47 mm tall.
References: Data-sheet. Type ZM1080 was first introduced in 1970.



Absolute Maximum Operating Conditions
General Notes
Va
170
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 18, 2020.
