GN-1



Extras ▼

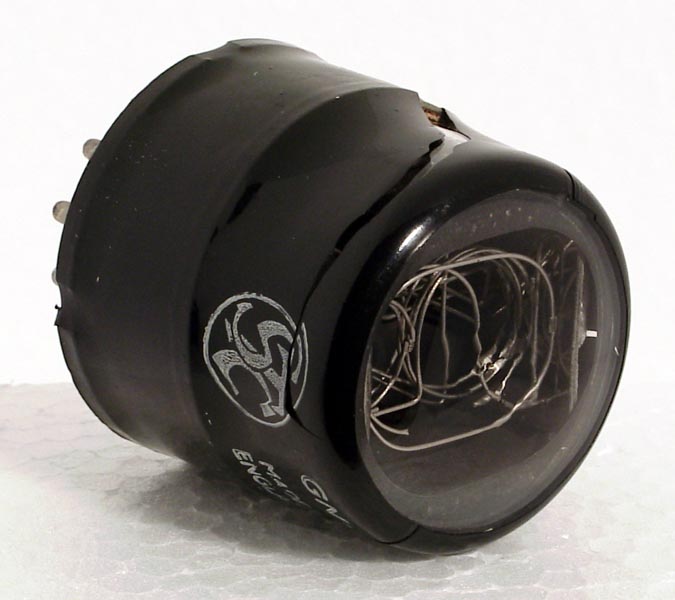

The GN-1 numerical indicator tube is a cold cathode gas filled design. The individual digits are made of wire and according to the anode selected to be powered the gas discharge will glow around the shape of the wire anode. The base is a special 12 pin design. The operating voltage is in the order of 2000 Volts.
The wide glass tube envelope is 44 mm in diameter and, excluding the base pins, is 45 mm tall.
References: Datasheet.



Pin Connections
1
2
3
4
5
6
7
8
9
10
11
12
k1
k2
k3
k4
k5
k6
k7
k8
k9
k0
a(p)
a



Absolute Maximum Operating Conditions
Cold Cathode
Va
200
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 23, 2013.
