Z520M



Extras ▼

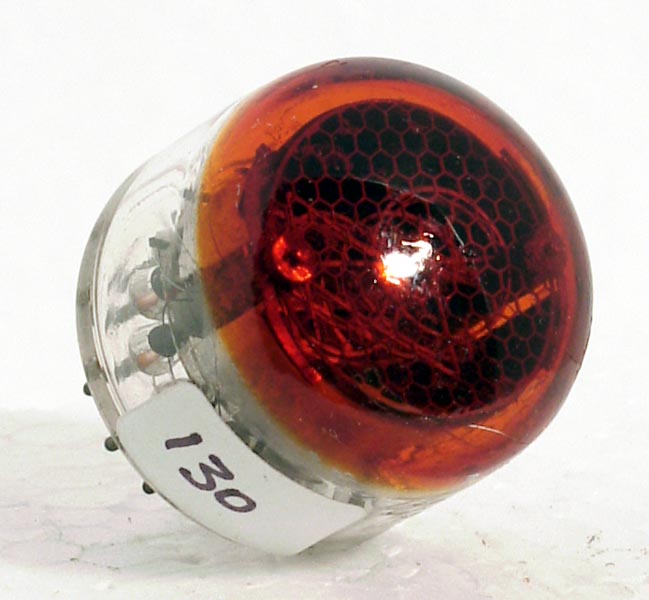

This display tube uses ten shaped anodes, each shaped as a digit from 0 to 9. The gas discharge around the chosen anode indicates the value chosen.
The normal operating voltage for such displays is in the order of 150 Volts.
The end window envelope is 29 mm in diameter and, excluding the base pins, is 25 mm long.
Reference: Datasheet. Type Z520M was first introduced in 1961.



Pin Connections
1
2
3
4
5
6
7
8
9
10
11
12
13
ic
a
k0
k9
k8
k7
k6
ic
k5
k4
k3
k2
k1



Absolute Maximum Operating Conditions
Indicator
Va
350
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 15, 2013.
