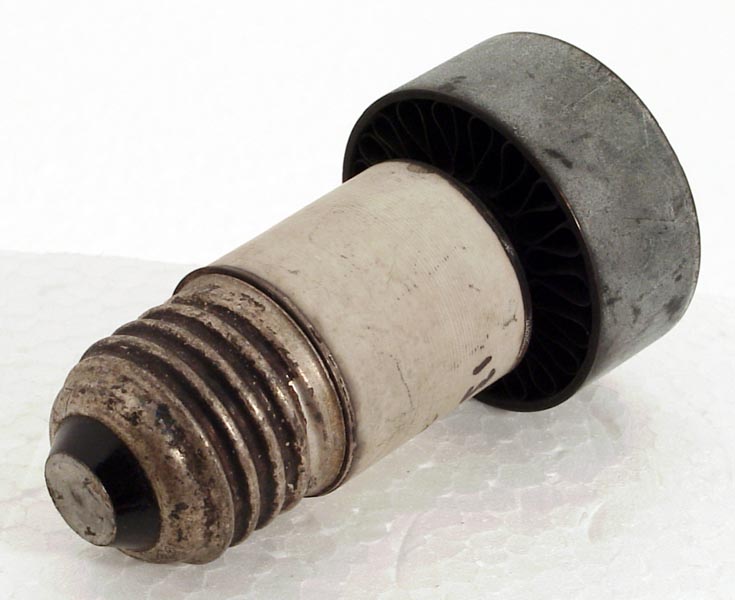

This exhibit has no markings to give identification. The rectifier is clearly a high power type because of the ceramic body and anode cooling fins. The base is Edison screw, and the anode cooling fins are fan fold tape within a securing outer ring. Forced air cooling is indicated.
The envelope is 39 mm in diameter and, excluding the base pins, is 75 mm tall.
Reference: Observation.


Updated January 05, 2013.
type:rectifier.hw base: pin:
