T21



Extras ▼

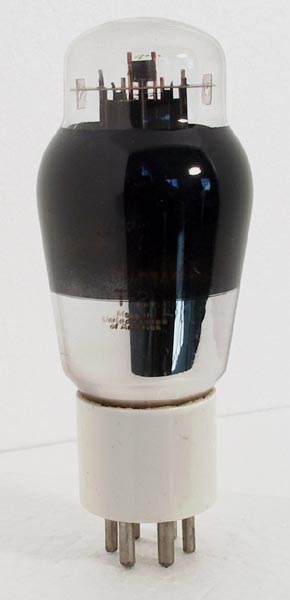

Type T21 is a WWII vintage Taylor Tube equivalent of the Raytheon type RK49. It is essentially a beam tetrode of the 807 class but single-ended.
The classic envelope is 48 mm in diameter and, excluding the base pins, is 105 mm tall.
References: Datasheet.



Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated December05, 2012.
shape:classic construction:pinch type:beam.tetrode age:1940.1950 base:ux6 pins:6 pin:
