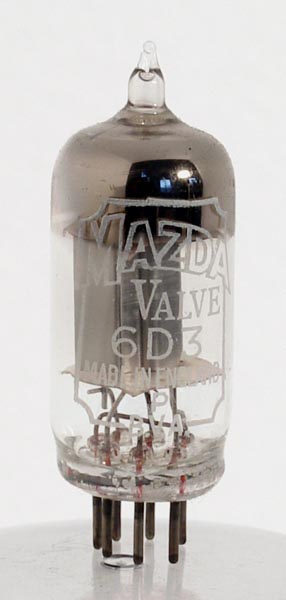

The 6D3 is a Mazda miniature valve that houses a single signal diode. The special feature of the design is a slow heating cathode.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
Reference: 1040 & 3002. Type 6D3 was first introduced in 1950.



Pin Connections
B7G
1
2
3
4
5
a
k
h
h
a



Absolute Maximum Operating Conditions
Diode
Vh
Ah
mAa
6.3
0.3
5
