D296



Extras ▼

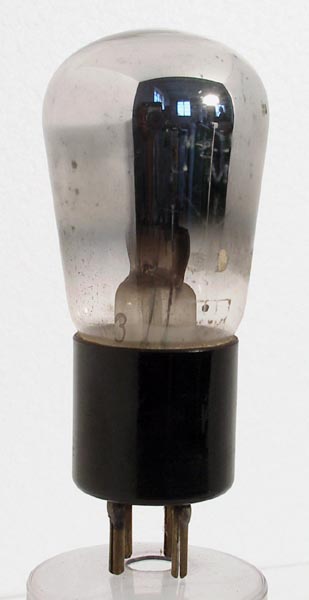

The structure of the D296 is partially obscured by the envelope silvering. The electrode support pinch can be seen.
We have no operating details for this valve as yet.
The balloon envelope is 43 mm in diameter and, excluding the B4 base pins, is 91 mm tall.
Reference: Observation.



Updated January 08, 2013.
