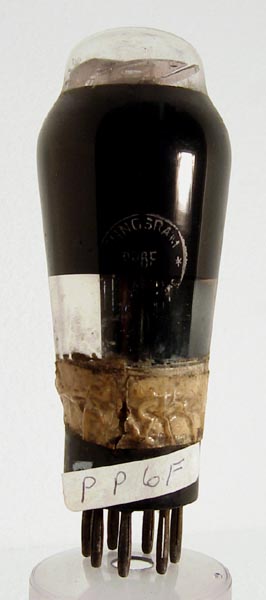

The PP6E is an indirectly-heated output pentode. The image above is incorrectly labelled due to part of the lettering having been wiped off. The PP6E is quite powerful, and one of only a small number of 6.3V types on B7 bases.The classic envelope is 47 mm in diameter and, excluding the B7 base pins, is 117 mm tall.References: 1043. Type PP6E was first introduced in 1937. See also 1937 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 |  nc | g1 | g2 | h | h | k,g3 | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | gm | rk | rl | Pout |
| 6.3 | 1.2 | 375 | 275 | -17 | 72 | 8 | 8.5 | 210 | 7,000 | 9W |
|
