SD20


See also:
0.18A Series-String Valves

Extras ▼

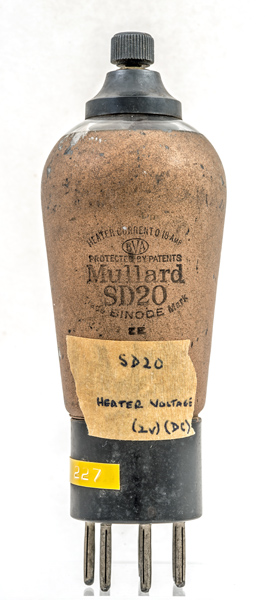

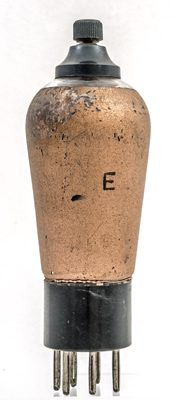

The SD20 in the picture is incorrectly identified as a battery valve. The SD20 is a 180 mA series heater chain valve for universal (AC/DC) sets. Released the previous year and in the Mullard data book is the SD4 that was a mains valve with the British standard 4 V heater for AC mains sets with mains transformers.

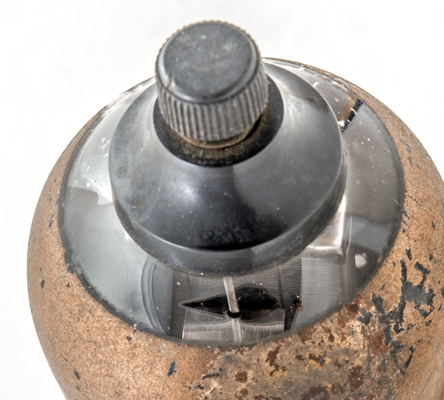

The screw connection at the top cap was an early design and this valve dates from the early 1930s.
The balloon envelope is 46 mm in diameter and, excluding the B7 base pins, is 124 mm tall.
References: 4024 & 1043. Type SD20 was first introduced in 1934.



Pin Connections
B7
1
2
3
4
5
6
7
tc
-
g1
g2
h
h
k,m
a(d)
a



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
20
0.18
200
100
-1.5
5.0
-
120k
2.8
Updated December14, 2012.
