Z806W



Extras ▼

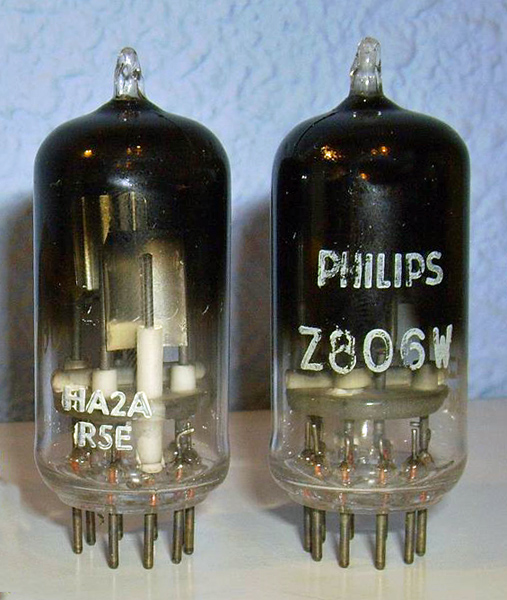

The Z806W is a cold cathode relay tube. The image and data was sent by Socram Malaquias who adds that these devices were used in old elevators (lifts) in Spain. He thinks that they were made in the Philips Barcelona factory.
The thin glass tube envelope is 22 mm in diameter, and excluding the B9A base pins is 49 mm tall.
Reference: Observation.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
ic
sk
sa
a
ic
st
ic
k
ic



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Vg
6.3
0.3
-1
PDF scanned from an original document held by the museum
