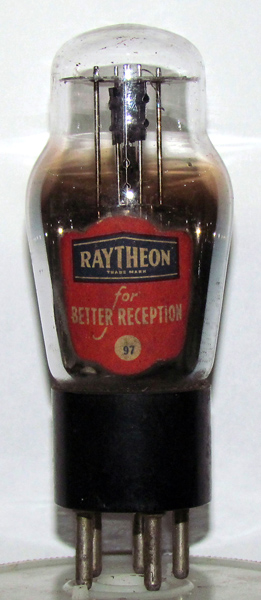

The type 97 is a double diode. As a signal diode it is unusual as the anodes are blackened to rediate heat.
Thanks to Bob Hopkins for sending the image.
The classic envelope is  mm in diameter, and excluding the UX5 base pins is  mm tall.
Reference: Observation.



Updated April 27, 2013.
