EAB1



Extras ▼

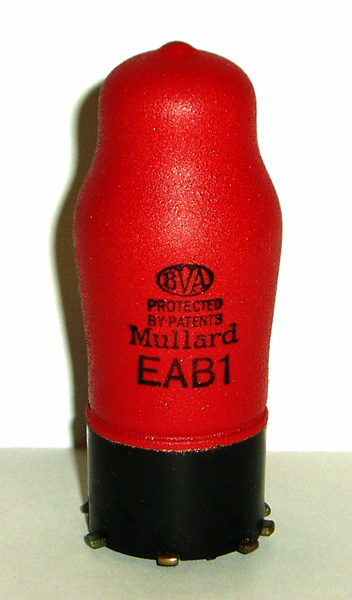

The EAB1 is a triple diode designed for signal detection, ACG rectification and delaying the start of the AGC action in all mains sets with heaters in parallel.
The AAB1 differs in having a 4 Volt 0.64 Amp heater. And the PAB1 designed for series heater chains has a 300 mA heater and draws that current at 6.3 Volts.

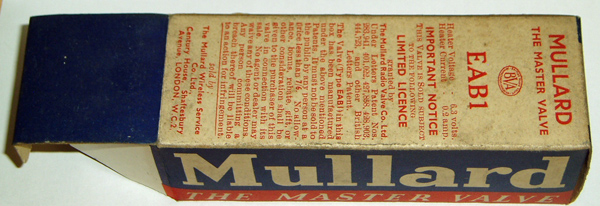

The original box.
Thanks to Mark from Vintage-parts for sending these images.
The classic envelope is  mm in diameter, and excluding the Ct8 base pins is  mm tall.
References: Datasheet, & 1043. Type EAB1 was first introduced in 1938.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
m
h
h
k
a(d3)
-
a(d2)
a(d1)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
mAa
6.3
0.2
200
0.8
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 27, 2017.
shape:classic construction:pinch type:triple.diode age:1930.1940 base:ct8 heater:6.3v pins:8 pin:1.m pin:2.h pin:3.h pin:4.k pin:5.a(d3) pin:6.- pin:7.a(d2) pin:8.a(d1)
