GH2677



Extras ▼



The GH2677 is a Barretter or current regulator. This one is designed for heater chains and stabilises a 600 mA line. The GH2677 was employed in military equipment for power supply PP-112 designed to power transceivers from a 24 Volt vehicle battery.

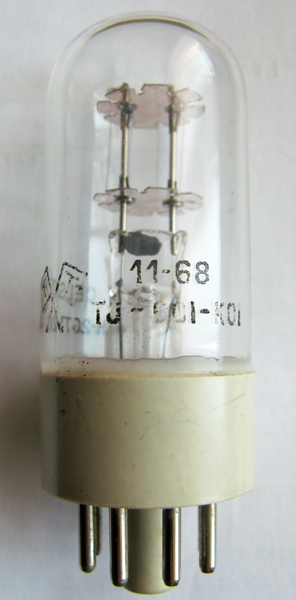

Thanks to Philippe Rossi for sending the image.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 70 mm tall.
Reference: 3002.



Updated April 11, 2020.
shape:wide.glass.tube construction:pinch type:barretter age:1930.1940 base:io pins:8 pin:
