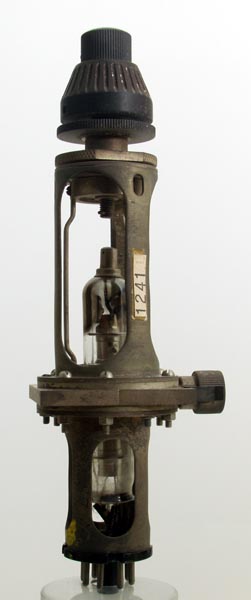

No clear type designation can be seen on this exhibit. It is clearly klystron like and the output is probably extracted via a co-axial cable attached to the central flange connector.
The thin glass tube envelope is 17 mm in diameter and, excluding the IO base pins, is 92 mm tall. The outer frame with tuning adjustment is 35 mm in diameter and 195 mm tall. the central cavity is on a flange 54 mm square and 5 mm thick. The overall cavity thickness on the outside is 13 mm.
References: Observation.
