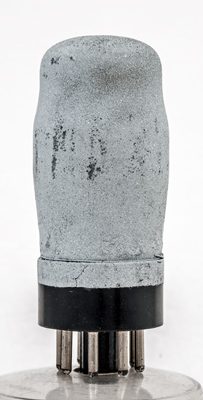

The DD101 is a double signal diode designed for AC or DC mains. The heater current rating is 200 mA for use within a heater chain.These are a pair of screened signal diode with application in HF rectification or demodulation. The design dates to 1938 when low capacitance diodes suitable for television were being developed.![](../pics/aai0356a.jpg)
The reverse of the envelope is plain zinc paint.The classic envelope is 32 mm in diameter, and excluding the MO base pins is 68 mm tall.References: Data-sheet & 1043. Type DD101 was first introduced in 1938. See also 1938 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) h | k(1) | a(d1) | s | a(d2) | m | k(2) | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | ![](../static/pdflogo.gif)
| 10.0 | 0.2 |
|
