CD12



Extras ▼



The CD12 is a large numeric cold cathode indicator tube. Each digit is formed from a metal shape and the display is formed by the discharge around the shape. Pin 12 connects to the common anode and each cathode has a separate pin.

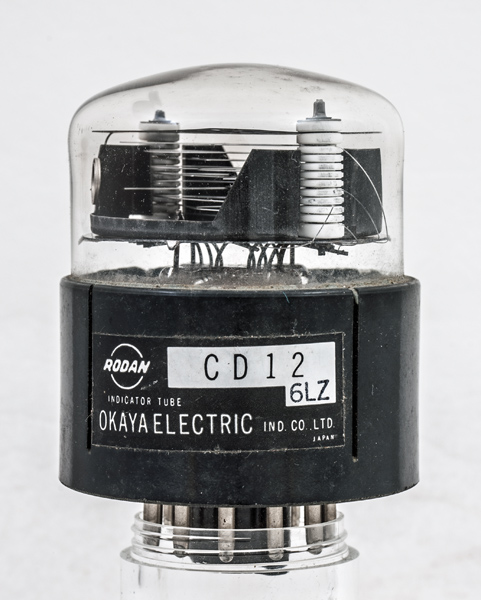

The brand name is Rodan.

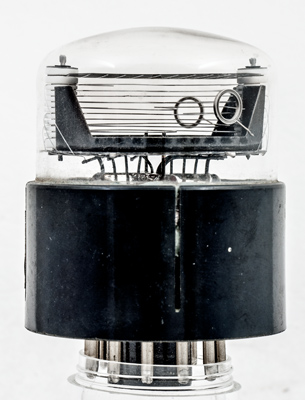

The cathode stack with the mesh anode above.

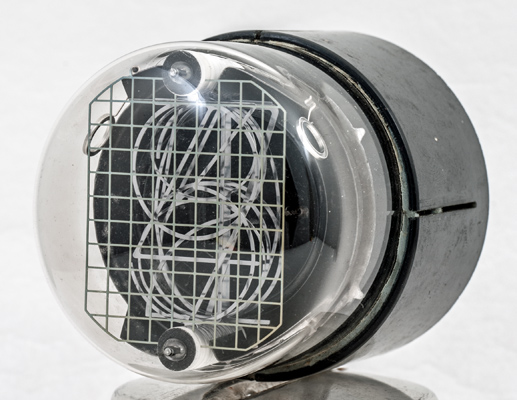

Top view with the anode grid and cathodes below.

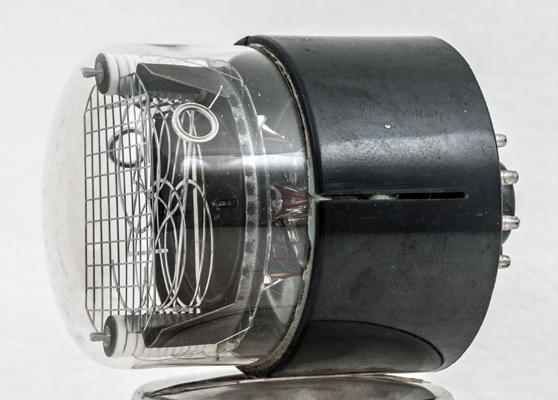

Each electrode is spaced with a ceramic washer.
The wide glass tube envelope is 50 mm in diameter, and excluding the base pins is 61 mm tall.
Reference: Datasheet.



Absolute Maximum Operating Conditions
Va
200
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 09, 2019.
shape:wide.glass.tube construction:pinch type:counter/indicator age:1950.1960 base: pins:12 pin:
