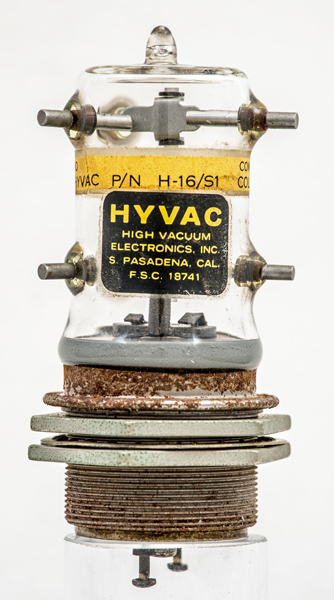

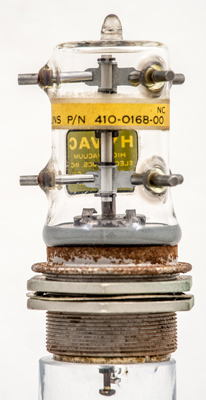

This interesting item is a high vacuum RF relay with two changeover poles.![](../pics/aai0611a.jpg)
The actuator is in the base and the central rod rotates.![](../pics/aai0611b.jpg)

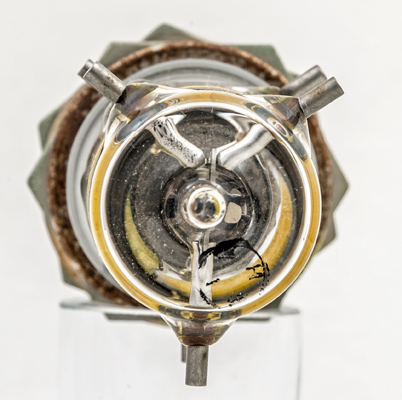

The two pin base with the operating voltage printed on it.![](../pics/aai0611c.jpg)

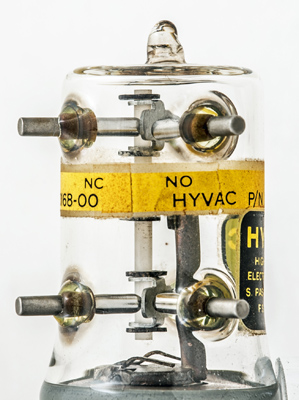

Top view showing the arrangements of the contacts.![](../pics/aai0611d.jpg)

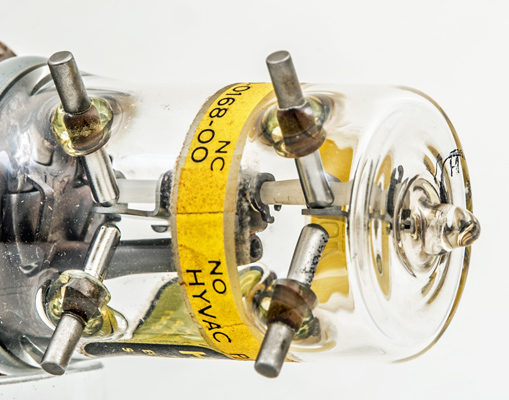

The contacts have rounded ends and the switch element is a flat paddle. The central tube is an insulator as the device is designed for high voltage.![](../pics/aai0611e.jpg)
Another view of the switch contacts.![](../pics/aai0611f.jpg)

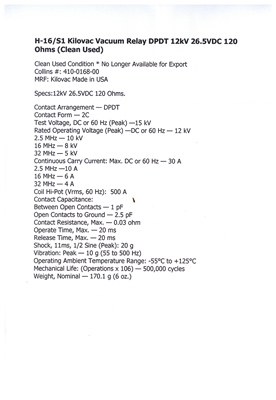

The data sheet.The wide glass tube envelope is 26 mm in diameter and, excluding the base pins, is 75 mm tall.References: Data-sheet. |
