EZ2



Extras ▼



The EZ2 is a full wave rectifier designed for use in car radios.

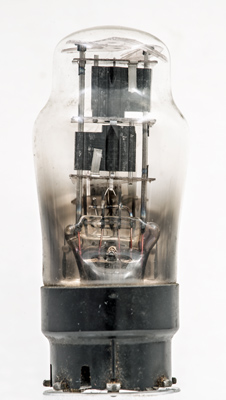

The two small anodes stacked vertically on the common cathode.

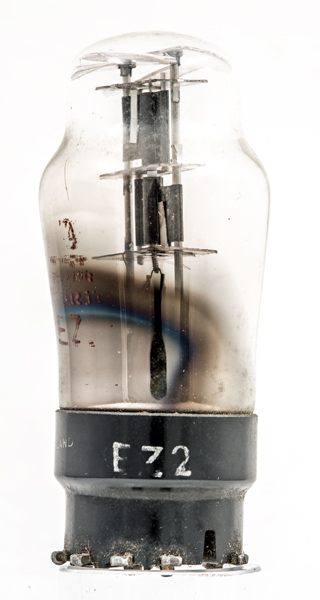

The red lettering gives the Mullard name and the EZ2. On the base it states that this was made in Holland - by Philips in Eindhoven. Most Philips/Mullard Ct8 valves seem to have been made on the continent. Ct8 based valves were never popular with UK set makers.

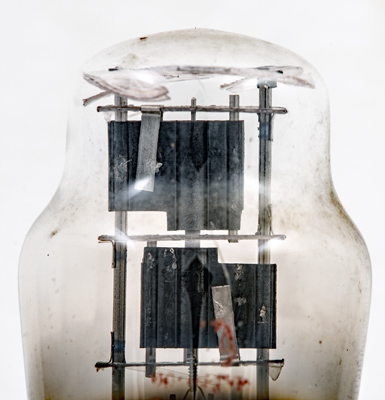

A closer view of the anodes.
The classic envelope is 34 mm in diameter, and excluding the Ct8 base pins is 78 mm tall.
References: Data-sheet & 1043. Type EZ2 was first introduced in 1937. See also 1937 adverts.



Pin Connections
Ct8
1
2
3
4
5
6
7
8
nc
h
h
k
a1
nc
nc
a2



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
6.3
0.4
350
60.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
