VPT4


See also:
Ferranti Advert, March 1935

Extras ▼

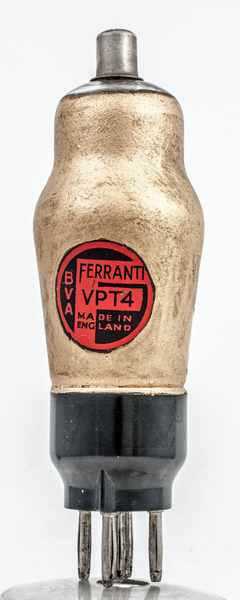

The VPT4 is a vari-μ RF pentode. The heater is the original UK standard for indirectly heated valves of 4.0 Volts at 1.0 Amps.

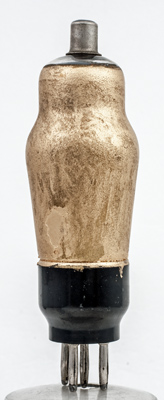

The reverse is plain gold metal loaded screening paint.
The classic envelope is 38 mm in diameter and, excluding the B5 base pins, is 105 mm tall.
Reference: 1043. Type VPT4 was first introduced in 1933.



Pin Connections
B5
1
2
3
4
5
tc
g2
g1
h
h
k,g3
a



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
4.0
1.0
250
100
-3.0
5.5
3.0
1M
2.3
Updated October 08, 2019.
shape:classic construction:pinch type:pentode age:1930.1940 base:b5 heater:4.0v pins:5 pin:1.g2 pin:2.g1 pin:3.h pin:4.h pin:5.k.g3 pin:tc.a
