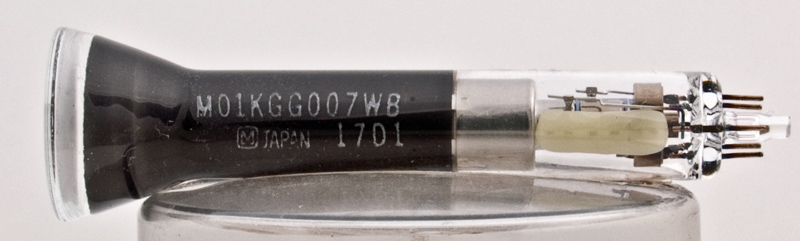

This exhibit is a small viewfinder CRT. The magnetic deflection coils are not factory fitted.

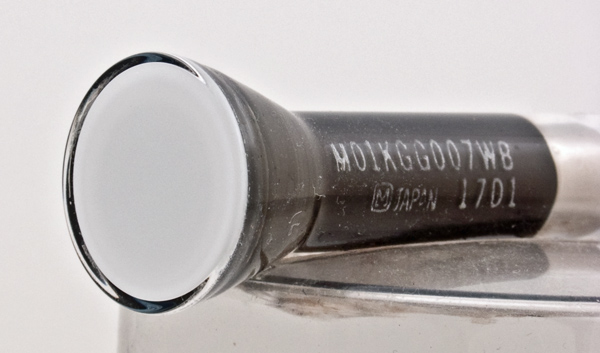

The flat round screen is a precision formed instrument.

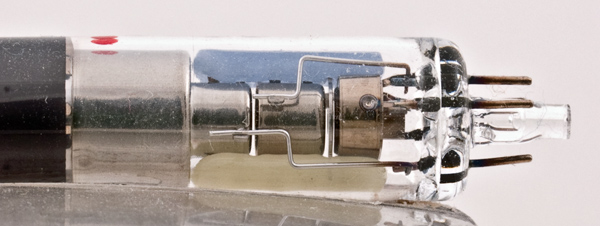

The gun and focus electrodes.
The end window envelope is 17.75 mm in diameter, and excluding the base pins is 60 mm tall.
Reference: Observation.


Updated June 21, 2013.
shape:end.window construction:all.glass type:cathode-ray.tube base: pins:6 pin:
