S.609C-59M



Extras ▼

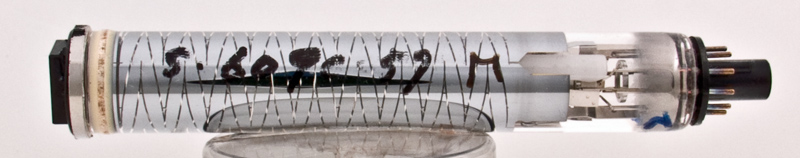

This exhibit looks like the camera tube in the CT-2132 exhibit.

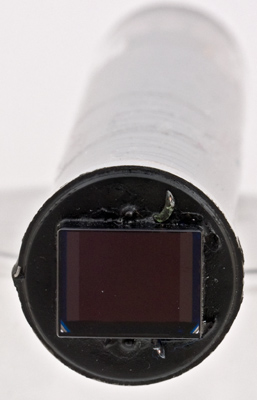

The filter and output connection.

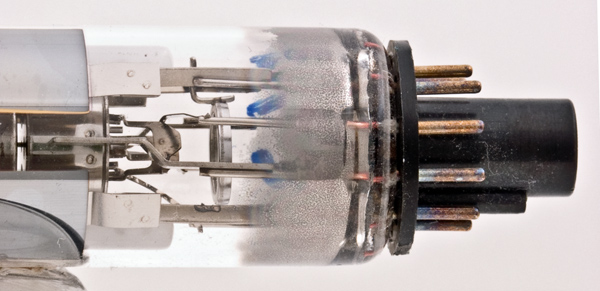

The base and heater/cathode components.

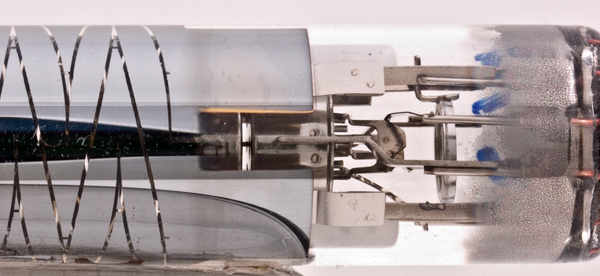

The gun assembly and coating inside the body of the tube. The space in the tube under the spiral cut coating is an empty space.
The end window envelope is 18 mm in diameter, and excluding the base pins is 110 mm tall.
Reference: Observation.



Updated June 21, 2013.
